Ephesus three-brush rollover car wash

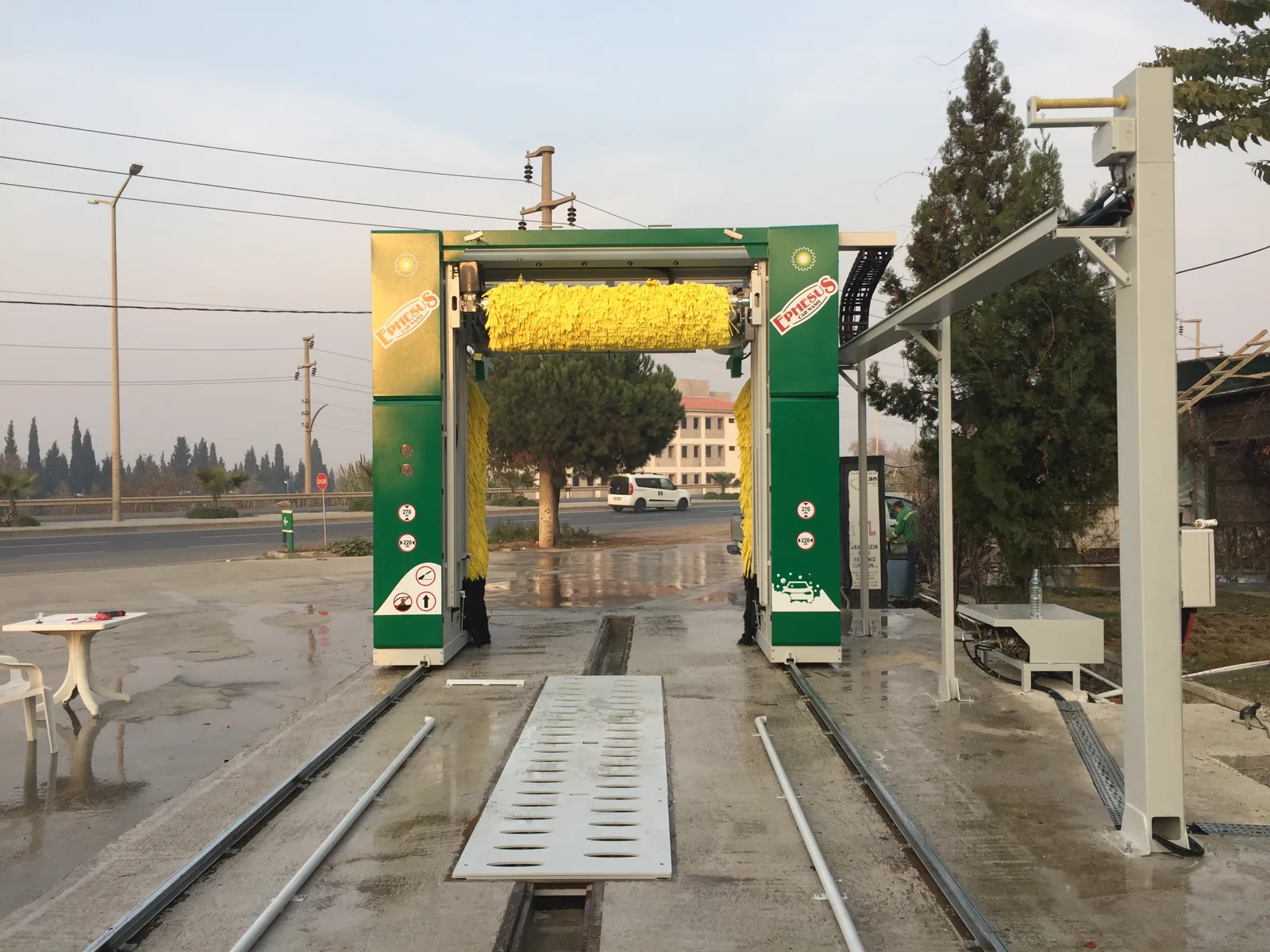

Ephesus cleans the sides with two vertical brushes and the front, roof and back with one horizontal brush. The vehicle stands still while the machine runs on rails, under PLC control.
- Sheet
- 03 / 04
- Subject
- Ephesus three-brush
- Supplier
- europemakine.com
Ephesus specification
| Brush units, vertical and horizontal | 2 + 1 |
|---|---|
| Operation time per vehicle | 2-2.5 min |
| Power installed | 3 kW |
| Voltage and frequency | 380 V / 50 Hz |
| Max washing height | 300 cm |
| Max washing width | 220 cm |
| Max machine width | 365 cm |
| Max machine height | 400 cm |
| Rail gauge | 300 cm |
| Rail length | 10 m |
| Program forms | 10 |
| Control | PLC computer control |
Who the Ephesus suits
Europe Makine calls the Ephesus one of its most sought-after models. It washes passenger cars, vans, jeeps and minibuses up to 300 cm high and 220 cm wide, in 2-2.5 min per vehicle.
The rails are 10 m long on a 300 cm gauge, and the machine itself is up to 365 cm wide and 400 cm high. Those four figures set the bay.
Built around Brush Swing
The vertical brushes hang on a swing mechanism with an independent reciprocating bearing shaft system. The horizontal brush carries a Digital Power Control reader and a safety roller, and its speed is adjusted by inverter.
The machine starts and stops softly through soft start and soft stop, and has an emergency stop button. Bridge execution motors are standard.
Water, air and pressures
| Water pressure | 3.5 bar |
|---|---|
| Water consumption | 60-80 lt/min (while running) |
| Air pressure | 6 bar |
| Air requirement | 56 lt/min (while running) |
| Electricity | 0.15 kWh/vehicle |
| Side surface and rim washer | At least 70-100 bar |
| V-jet water and chemical spray | 4 bar |
| Chassis wash | 7.5 bar |
Standard equipment
Every Ephesus comes with a chemical dosing pump for the foam laying system, a polish dosing pump of Italian origin and a pedestal operator panel. Decorative polyester dressing covers the sides and top forehead, and the water shields have transparent window compartments.
The control keeps counters for each program, offers operator encryption as an option and signals faults by address. Numerator directional pipes show the count of washed vehicles. The machine is modular for optional equipment, and Europe Makine describes its operating and maintenance costs as minimal.
Questions and answers
- How long does an Ephesus wash take?
- The published operation time is 2-2.5 min per vehicle.
- How much room do the rails need?
- The rail gauge is 300 cm and the rail length is 10 m. The machine itself is up to 365 cm wide and 400 cm high.
- What power supply does the Ephesus need?
- 380 V / 50 Hz, with 3 kW installed and 0.15 kWh used per vehicle.
- How many wash programs does it hold?
- Ten program forms, run under PLC computer control.
- Is installation included with the Ephesus?
- Yes. Europe Makine installs every Ephesus at no charge, ships it door to door and covers it with a 12-month warranty.
- Can I download the Ephesus specification sheet?
- Yes. The Ephesus page on europemakine.com offers a specification sheet (2.1 MB) and a brochure (1.5 MB).
