CIRRUS 5N, the five-brush rollover car wash
CIRRUS 5N washes with four upright brushes that move independently and one horizontal brush. The machine travels over the stationary vehicle on two floor rails, under PLC computer control.
- Sheet
- 02 / 04
- Subject
- CIRRUS 5N five-brush
- Supplier
- europemakine.com
CIRRUS 5N specification
| Variants | 250, DR250, 300, DR300 |
|---|---|
| Brush units, upright and horizontal | 4 + 1 |
| Upright brushes | Independent movement |
| Brush system | Brush Swing, Digital Printing Control |

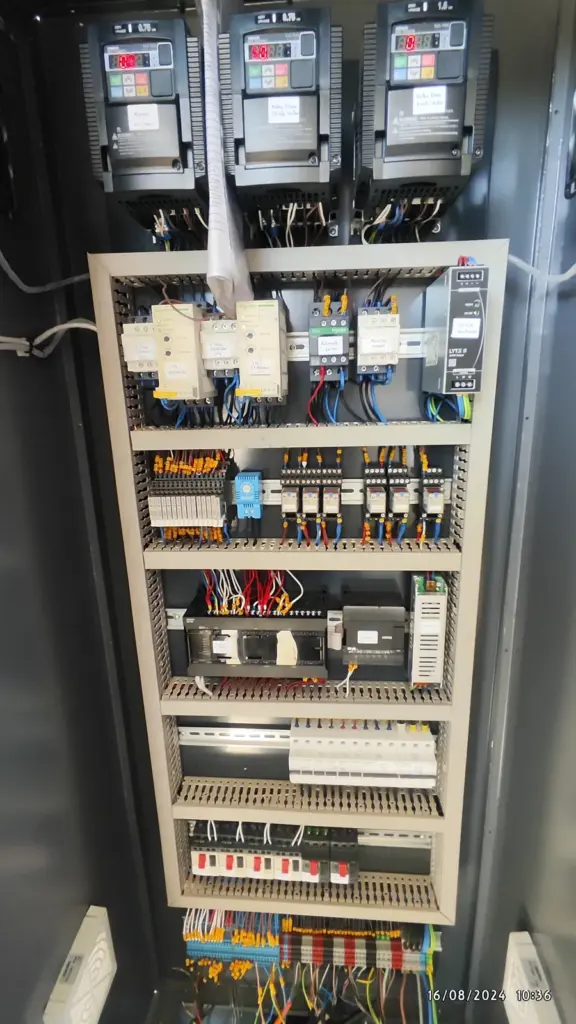

| Brush drive | Timing belt or chain, inverter frequency control |
| Control | PLC computer control, automatic process |
| Machine travel | On two floor rails, vehicle stationary |
Five brushes on a swing system
The four upright brushes move independently of each other, and the horizontal brush is the fifth. The Brush Swing system lets the brushes work across a wide range of vehicles, and the brush system runs with Digital Printing Control.
Brushes are driven by timing belt or chain, with inverter frequency control. Washing height is set by the variant: the 250 and 300 versions differ in washing height, and each comes in a DR version as well.
The CIRRUS 5N is one of four systems Europe Makine builds for cars, vans and light commercials, alongside the Ephesus, the touchless ACROBAT 2X and the conveyor tunnel. It is built in Europe Makine's own 1,500 m² facility and shipped door to door. Installation is free, the warranty runs for 12 months, and US service technicians and spare parts stock are at the Greenacres, Florida plant.
Wash functions around the brushes
A rotary nozzle side and wheel unit washes at high pressure. A V-jet sprays water and chemicals, a polish dosing pump of Italian origin lays the polish, and a chassis wash moves its nozzles left and right under the vehicle.
Optional components can be installed at any time, so equipment can be added after the machine is in service.
Published throughput
| Wash only | 24-32 vehicles/hr |
|---|---|
| Wash and dry | ~14 vehicles/hr |
What sets throughput
Throughput depends on the variant and on whether the cycle includes drying. The figures above come from Europe Makine's car wash systems page and cover the CIRRUS 5N line.
The operator display shows vehicle counters for each program and supports encryption, with fault indication as an option. The whole process is automatic under PLC computer control.
Questions and answers
- What is the difference between the CIRRUS 5N variants?
- There are four: 250, DR250, 300 and DR300. The 250 and 300 versions differ in washing height.
- How many cars an hour does a five-brush rollover wash?
- Europe Makine publishes 24-32 vehicles an hour for wash only and about 14 an hour with drying for the CIRRUS 5N, on its car wash systems page.
- Is installation included with the CIRRUS 5N?
- Yes. Europe Makine installs it at no charge, ships it door to door and covers it with a 12-month warranty.
- Does the CIRRUS 5N wash the underside?
- Yes. Its chassis wash moves the nozzles left and right under the vehicle.
- Where does the vehicle sit during the wash?
- It stands still in the bay. The CIRRUS 5N travels over it on two floor rails.
- Can I download the CIRRUS 5N brochure?
- Yes. The CIRRUS 5N page on europemakine.com offers a specification sheet (311 KB) and a brochure (2.6 MB).
